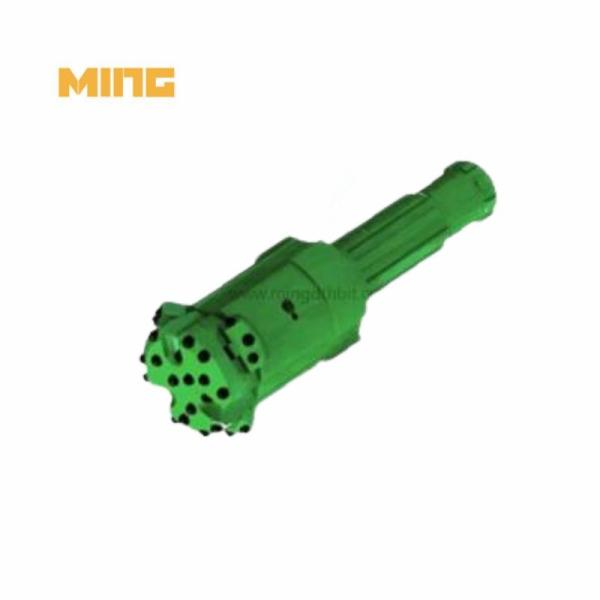

155mm NMK5E Overburden Symmetric Casing Drilling System For Water Well Drilling

Name: 155mm NMK5E Overburden Symmetric Casing Drilling System For Water Well Drilling
Brand: MING
Price: 999 USD

155mm NMK5E Overburden Symmetric Casing Drilling System For Water Well Drilling Manufactures

Brand Name : MING

Model Number : NMK5E146-DHD340

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1PC

Price : 999-99999USD/PC

Payment Terms : T/T, D/P, Western Union

Supply Ability : 2000PCS/MONTH

Delivery Time : 3-5WEEKS

Packaging Details : WOODEN CASE

Material : High Manganese Steel,Carbide,diamond

Use : Mining & Water Well Drilling,Quarry Or Mining Or Well Drilling

Type : Symmetrix Casing,Odex Overburden System

Machine type : Drilling Tool,Drilling Equipment

Processing type : Forging,Machining Process

Product name : Concentric Casing System

Color : Gold,Request,Yellow,Red

Application : Water Well Drilling

Usage : Mining&Construction&Water Well Drilling,water Well

Advantage : High-efficiency,Widely Used Hard Rocks And Have Good Penetration

Model type : Cop,Halco,DHD,Mission,NUMA

Name : NMK5E Overburden Drilling Casing System

Item : Overburden Drilling Casing System

Button shape : Spherical/Ballistic/Parabolic/Sharp/Flat

Advantages : High Performance,High Quality And Factory Prices

High Light : NMK5E Overburden Drilling System Bit, Symmetric Casing Drilling System

Contact Now

Product name: 155mm NMK5E Overburden Symmetric Casing Drilling System For Water Well Drilling

Product category: Overburden symmetric drilling tools

Matched hammer: Hammer DHD340

Reaming Diameter(mm): 155mm

Our engineers have also optimized the structure of the NMK5E Overburden Drilling System Bit, improving its structural strength and ease of operation. This means that you can expect a tool that is not only strong and sturdy, but also user-friendly. Its ergonomic design allows for effortless handling, reducing operator fatigue and enhancing overall efficiency.

But what truly sets the NMK5E Bit apart is its superior performance. With its high drilling speed, you can complete your drilling tasks in record time. The stability and reliability of this drill bit ensure consistent and precise drilling, allowing for accurate and clean results, no matter the surface or material you are working with.

Advantages:

1. Straight Holes and Fast Penetration Rate
2. Less Torque in all ground conditions
3. Easy System to lock and Unlock Ring
4. Drilling at any angle required
5. More Holes and Low investment

Water well drilling new design 3 middle wings symmetric casing drilling bit technical parameters:

Technical Parameters
Model	Reaming Diameter(mm)	Casing Diameter(mm)	Equipped Hammer
NMK5E108	115	93-99	90
NMK5E127	130	115-117	110
NMK5E146	155	130-134	110/340
NMK5E168	185	148-156	110/340
NMK5E178	195	158-166	150/340
NMK5E183	196	168-176	350/360
NMK5E193	206	176-182	360
NMK5E219	236	199-207	360

How to order:

Order Guide: Casing Tube OD & ID + Reamer Bit Diameter + Minimal Casing Shoe ID + Hammer Shank Style

Other size of NMK system is available upon customer's request

FAQ:

1. What is odex drilling?

The air-operated down-the-hole hammer is adapted as ODEX. It reams the bottom of the casing with a swing-out eccentric bit. Cuttings emerge via the casing annulus and drive sub, passing through a swivel and onto the ground or a sample collector. Quick removal of the cuttings.

2. What is Symmetrix drilling?

Previously known in our industry as Concentrix, the updated Symmetrix system allows for the simultaneous casing and drilling of a hole. The system consists of three main components: pilot bit, ring bit (reamer) and casing shoe

3. How does a casing advancer Work?
The Casing Advancer has been designed to allow drilling and casing to be carried out at the same time as one integral operation. This feature eliminates the need to drill the large diameter hole with a Rock Bit, pull the drill rod string and Rock Bit from the hole and then ream the casing back into the hole.

4. Where does overburden go during a mining operation?

Overburden is employed as a building and road construction material, for reprocessing, and for contouring land. Reclaimed mine tailings are used to make concrete, glass, tiles, and clay. After being cleaned, mine water is used as a coolant, in industry and agriculture, and to control dust and particulates.

5. How deep can a water well be drilled?

Drilling a Water Well for household use will usually range from about 100 feet to 500 feet deep, but... When drilling a new well for your home or business, the depth of the well depends on the geology and underground water levels of the area.

MORE INFORMATION:

Product Tags:

Water Well Overburden Drilling System

155mm NMK5E Overburden Symmetric Casing Drilling System For Water Well Drilling Images
