Carbon Steel Overburden Casing Drilling System 813mm With 3 Wings For Pilling

Brand Name : MING

Model Number : MK-MRHK560/610

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1pc

Price : 999-999999USD/PC

Payment Terms : T/T

Supply Ability : 2000PCS/MON

Delivery Time : 3-4 WEEKS

Packaging Details : WOODEN CASE

USE : PILING

TYPE : Overburden

Product name : odex drilling system

Application : construction

Advantage : High Performance

Color : Gold,Yellow

Hammer type : Overburden drilling system

Button shape : Spherical/Ballistic/Parabolic/Sharp/Flat

Contact Now

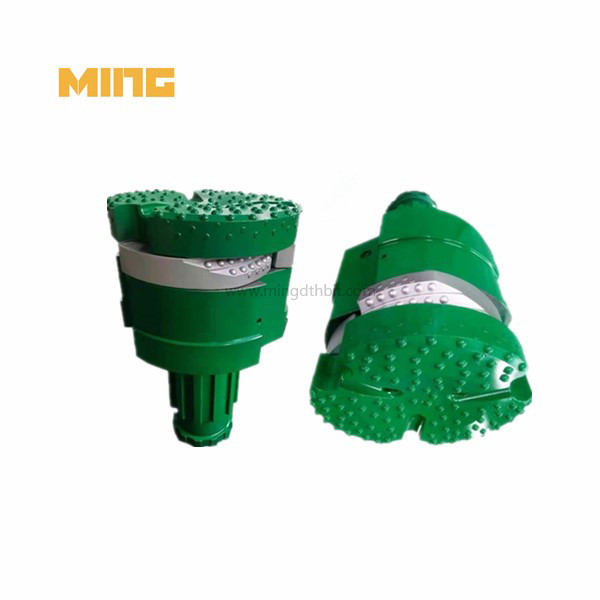

Product name: High carbon steel overburden casing drilling system 813mm with 3 wings for pilling in construction

Casing pipe OD: 610mm

MING MRHK overburden casing drilling bit is designed to increase productivity, with its ability to drill faster and deeper than traditional drilling methods. And with its optimized flushing system, it ensures that debris is cleared from the hole quickly and efficiently, reducing downtime and increasing drilling efficiency.

Product components:

1. Pilot bit+3PCS wings+casing shoe

Production details:

Carbon Steel Overburden Casing Drilling System 813mm With 3 Wings For Pilling

Model Hole dia.(mm) Weight (KG) Closed dia(mm) Pilot dia (mm) Total length(mm) Wings Qty(PCS) Case Dia(OD*ID) Spline
MK-MRHK280 345 180 280 300 740 3 323*302 SD10
MK-MRHK315 373 240 315 336 1050 3 356*337 N120
MK-MRHK365 432 350 365 381 1100 3 406*387 N120,N125
MK-MRHK410 478 450 412 430 1100 3 457*435 N125
MK-MRHK460 530 580 460 475 1100 3 508*483 N125,SD18
MK-MRHK510 580 760 509 527 1180 3 559*533 N180,SD18
MK-MRHK560 635 830 560 581 1180 4 610*584 N180,SD18
MK-MRHK610 695 960 600 630 1200 4 660*632 N240
MK-MRHK660 735 1180 656 681 1207 4 711*685 N240
MK-MRHK710 785 1400 710 730 1207 4 762*736 N240
MK-MRHK745 838 1600 745 776 1207 4 813*780 N240
MK-MRHK810 886 1800 809 833 1220 4 864*838 N240S
MK-MRHK830 938 2050 825 870 1220 4 914*876 N240S
MK-MRHK910 980 2300 905 930 1220 5 965*935 N240S
MK-MRHK950 1054 2600 950 980 1220 5 1016*986 N240S
MK-MRHK1150 1245 3500 1145 1175 1230 6 1219*1181 N330

How to order:

Casing Tube OD & ID + Reamer Bit Diameter + Minimal Casing Shoe ID + Hammer Shank Style

Product advantage:

Casing advancement system: The casing advancement system allows the outer casing to be advanced through the overburden soil while drilling, ensuring that the borehole remains stable and the casing is securely in place.

MORE INFORMATION:

Carbon Steel Overburden Casing Drilling System 813mm With 3 Wings For PillingCarbon Steel Overburden Casing Drilling System 813mm With 3 Wings For PillingCarbon Steel Overburden Casing Drilling System 813mm With 3 Wings For PillingCarbon Steel Overburden Casing Drilling System 813mm With 3 Wings For PillingCarbon Steel Overburden Casing Drilling System 813mm With 3 Wings For PillingCarbon Steel Overburden Casing Drilling System 813mm With 3 Wings For Pilling
